Network Port 1x1 Tab Down RJ45 Jack Module With Lan Transfomer 100Base J0011D01NL

Name: Network Port 1x1 Tab Down RJ45 Jack Module With Lan Transfomer 100Base J0011D01NL
Brand: DGKYD
Price: 1 USD

Buy cheap Network Port 1x1 Tab Down RJ45 Jack Module With Lan Transfomer 100Base J0011D01NL product

Place of Origin : DongGuan of China

Brand Name : DGKYD

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

MOQ : 1 piece

Packaging Details : Tray in Carton

Delivery Time : 10 days

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Model Number : KRJ-003DNL

Price : Please contact us to get the latest price.

Application : fiber optic,ip camera ,dvr,dsl,modem,wifi etc

Feature : Shielded RJ45 network port

OEM/ODM : yes

Type : rj45 connector

Gender : female jack

Product Name : RJ45 Modular Jack

Contact Now

Shield Network port 1 x 1 Tab Down RJ45 Jack Module with Lan Transfomer 100Base

ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40 to +85℃
GROUNDING OPTIONS	Panel Ground and PCB Ground
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	YES
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	DIP
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
NUMBER OF PORTS	1X1
NUMBER OF CONTACTS	8
LED OPTION	NONE
LATCH ORIENTATION	LATCH DOWN
HOUSING MATERIAL	PBT UL94V-0
CONTACT MATING AREA PLATING	GOLD 6U'' PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

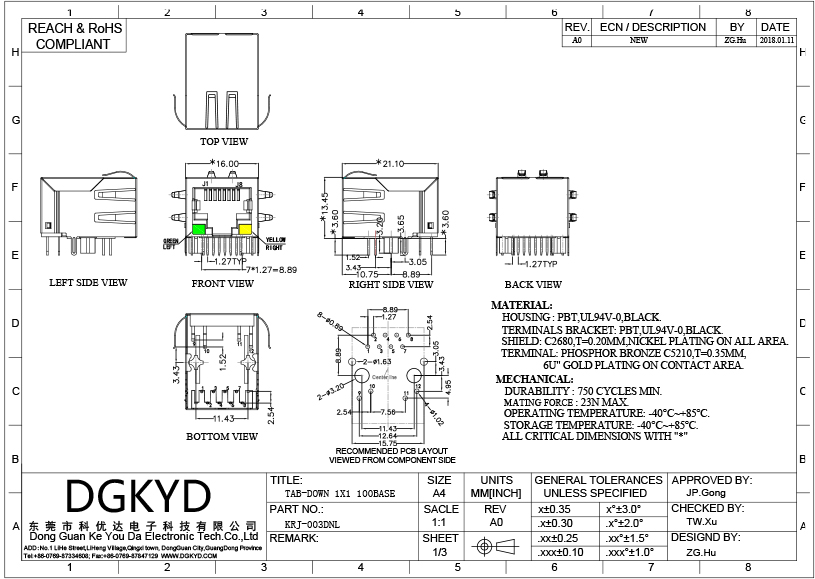

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated

Network Port 1x1 Tab Down RJ45 Jack Module With Lan Transfomer 100Base J0011D01NL

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
