100Base 8 pin RJ45 Single Port Modular Jack Tab Up Without LED RJ45 With Transformer

Keyouda Electronic Technology Co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

100Base 8 pin RJ45 Single Port Modular Jack Tab Up Without LED RJ45 With Transformer

Brand Name : DGKYD

Model Number : DGKYD211B297HWA4D

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : Negotiation

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 20 days

Packaging Details : 1080 Tray in Carton

Product type : RJ45 100M Connector

Encapsulation method : single In-line Package

Application : PCB

Material : PBT

Orientation : 90° Angle (Right)

Number of pins : 8

Dimension (mm) : 15.95* 21.35*13.6

Gender : Female

Storage temperature : - 40 ℃ ~ 85 ℃

Applications Speed : 10/100 Base-T, AutoMDIX

RJ45 Connector Tab Direction : Tap UP

Contact Now

100Base 8 Pin RJ45 Single Port Modular Jack Tab Up Without LED



Single Port Tab Up Without LED 100Base-T DGKYD211B297HWA4D Ethernet 8Pin RJ45 Connector



Why Choose Us

DGKYD specializes in manufacturing RJ45 connectors and network transformers, and a high-tech enterprise integrating R&D, production, sales and service, with years of manufacturing history in connectors and transformers.

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 0 ℃ - 70 ℃,

Storage temperature: - 40 ℃ - 85 ℃

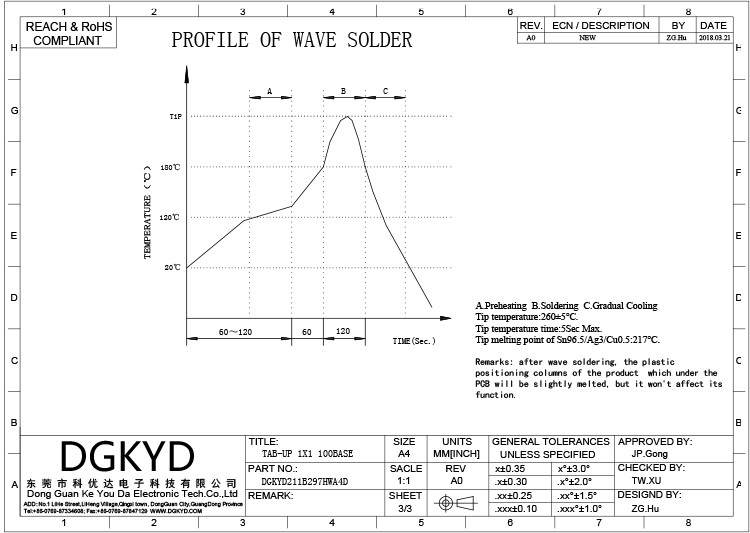

Lead free soldering: wave soldering height up to 265 ℃

Quality

• Lean production management.

• 100% Tested (Not Just Batch Tested).

Certification

• ISO 9001:2008,

• ROHS CE FCC Compliance

• Active Environmental Policy.

Have R&D dept

• OEM Service Offered, Design Service Offered.

• Engineer Can Design Products As You Need,Developer Tooling As Customer Require.

Price And Service



 Parameters

Part Number

DGKYD211B297HWA4D

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Up
Filter With Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions 

8

Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Drawings

100Base 8 pin RJ45 Single Port Modular Jack Tab Up Without LED RJ45 With Transformer100Base 8 pin RJ45 Single Port Modular Jack Tab Up Without LED RJ45 With Transformer100Base 8 pin RJ45 Single Port Modular Jack Tab Up Without LED RJ45 With Transformer
